Contactless 360° greasing of holes

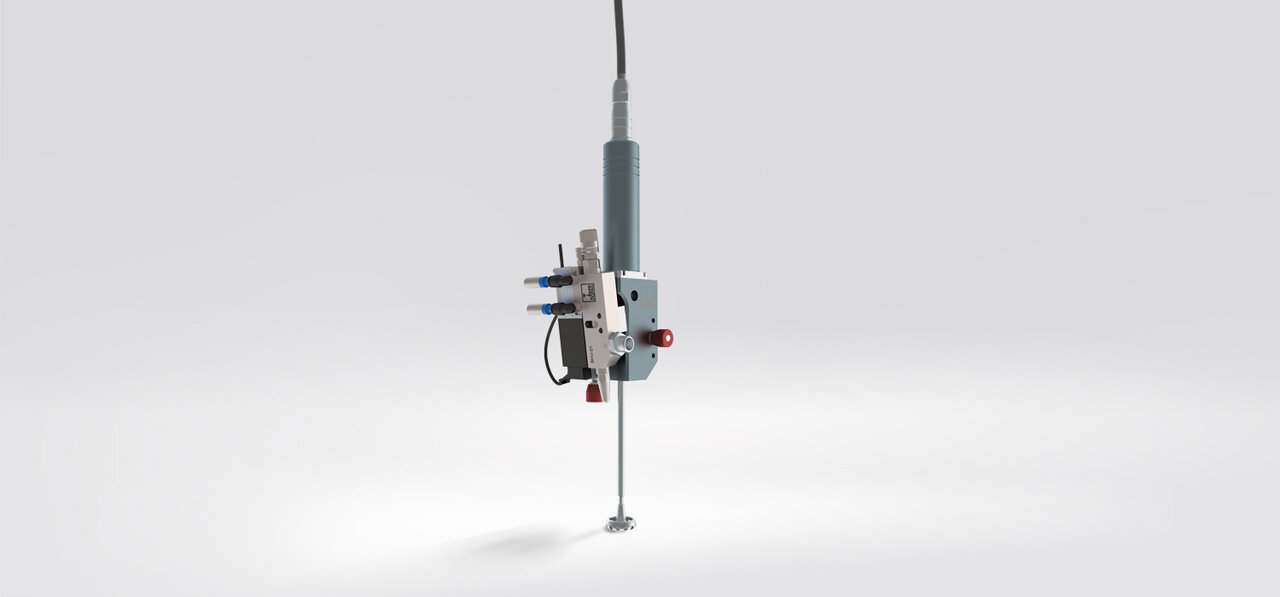

The rotary applicator was specially developed for 360° greasing or oiling of holes. For rotary lubrication, the applicator is attached to the SHV-01 shot valve from DOPAG. The material is applied shot by shot and contactless. The patented rotary applicator offers a high flexibility and various applications, as a wide range of different diameters can be covered. The amount of the material can be variably adjusted. A wide range of rotation speed ensures an ideal material distribution. The valve seat closes completely, so there will be no material dripping. Overspray will be avoided. Further, self cleaning with a special spinning function is included.
Rotary lubrication with the shot valve
- 360° lubrication of bores and contours
- Different centrifuge sizes
- Max. shot frequency of 200 Hz (SHV-01)
- Max. rotation speed approx. 15’000 rpm
- Bore diameter approx. 15 – 200 mm*
- Immersion depth approx. 0 – 200 mm*
* Different areas of application according to customer requirements possible.
- 24 V / 50 W heating with temperature sensor PT100
- Silencer kit
- Light barrier for shot detection
- Stroke detection device with cable
