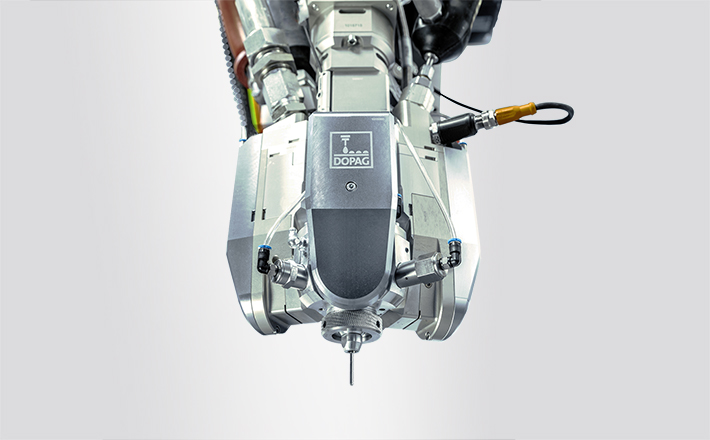

全新动态混合头

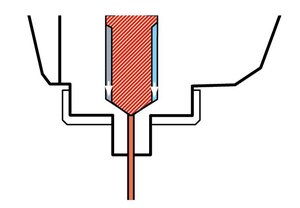

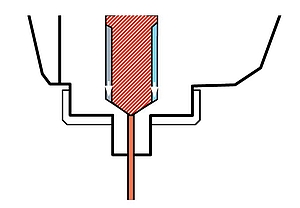

新型阀体技术动态混合头,能够混合低到高粘度的材料,实现发泡、粘接、密封和灌封。
- 重量轻,体积小,设计紧凑
- 混合系统(混合管和混合腔)拆装简单
- 混合头和混合系统清洁保养简单
- 低磨损
- 所有组份可再循环到混合系统中
- 计量精度为+/- 1%(取决于材料及混合比等)
Technical specifications
Mixing head P1 | Mixing head P2 | Mixing head P2 | |
---|---|---|---|
Available in three mixing chamber sizes [cm³] | 0,2 0,4 0,8 | 1,0 1,6 2,0 | 2,5 4,0 8,0 |
Discharge capacity [g/s] (Depending on the material, mixing ratio and viscosity) | 0,1 -1,6 | 0,5-4,0 | 1,2-30,0 |
Metering accuracy (Depending on the material, mixing ratio and viscosity) | +/- 1% | +/- 1% | +/- 1% |
Control unit | Motion control and visualisation: B&R Metering control: MR40 | Motion control and visualisation: B&R Metering control: MR40 | Motion control and visualisation: B&R Metering control: MR40 |
Operating unit | 10.1" handheld operating box Optional 5.6" operating panel | 10.1" handheld operating box Optional 5.6" operating panel | 10.1" handheld operating box Optional 5.6" operating panel |
Mixing ratio | from 100:1 to 1:100 infinitely variable | from 100:1 to 1:100 infinitely variable | from 100:1 to 1:100 infinitely variable |
Selectable mixer speed | 1-3,000 U/min infinitely variable | 1-3,000 U/min infinitely variable | 1-3,000 U/min infinitely variable |
Weight | approx. 12 kg (incl. drive and attachment parts) | approx. 12 kg (incl. drive and attachment parts) | approx. 12 kg (incl. drive and attachment parts) |
